Gas Panel

●  Hook up panel take a lot of on-site working hours, we can provide prefabrication service for hook up panel, including take off tee and panel assembly. This service can reduce weld bead and working hours.

●  Panel and tee can be connected on-site, and not limit by the raised floor (600x600mm).

●  The component of panel is fabricated according to customer design drawing.

●  Panel and tee can be sold separately based on customer requirement.

●  Please verify the specifications of the valve and fitting according to the manufactory catalog.

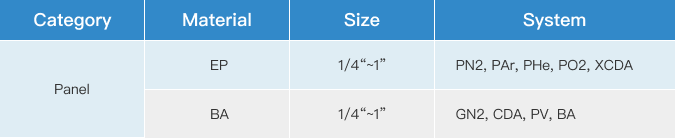

Gas panel specification description

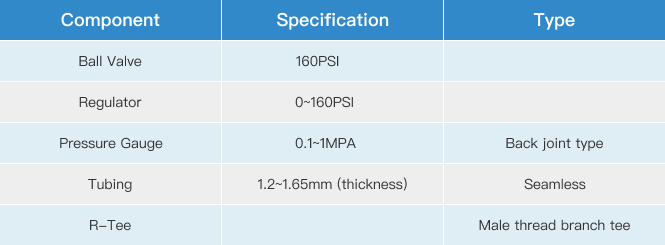

Specification Definition

Pipe and panel size are according to customer requirement.

Panel under raised floor(600*600mm)
  • 2 TEE
  • 3 TEE
  • 4 TEE
  • 5 TEE
  • 6 TEE

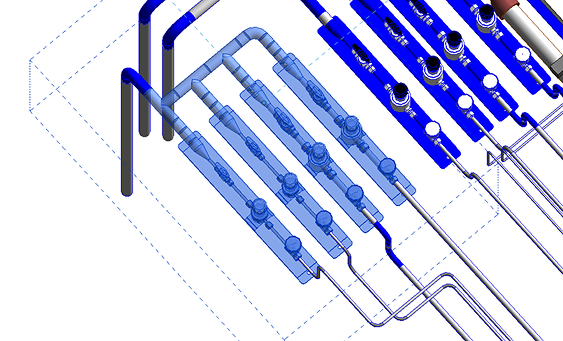

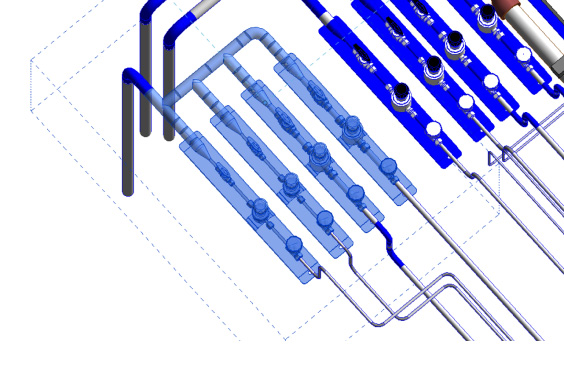

Panel on Sub Fab
Hook-up Panel for Gas

●  Several kinds of panel provided according to application and requirement by customer.

●  Add on steel plate if required.
