PCWS/R Panel

●  Hook up panel take a lot of on-site working hours, we can provide prefabrication service for hook up panel, including take off tee and panel assembly. This service can reduce weld bead and working hours.

●  Panel and tee can be connected on-site, and not limit by the raised floor (600x600mm).

●  The component of panel is fabricated according to customer design drawing.

●  Panel and tee can be sold separately based on customer requirement.

●  Please verify the specifications of the valve and fitting according to the manufactory catalog.

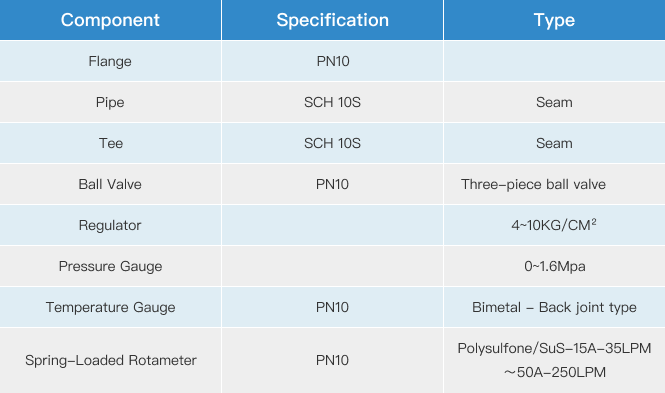

PCW panel specification description

Pipe and panel size are according to customer requirement.

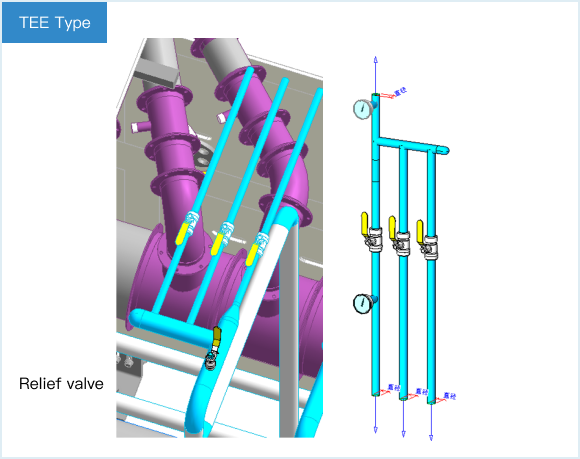

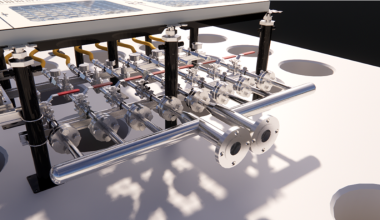

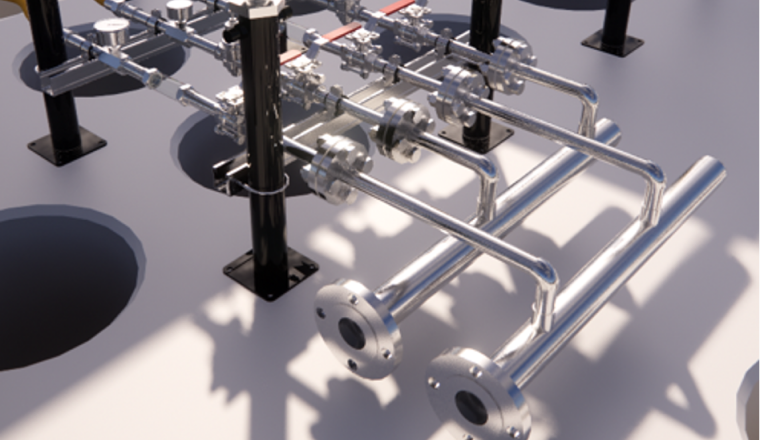

Panel under raised floor(600*600mm)

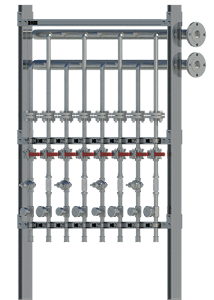

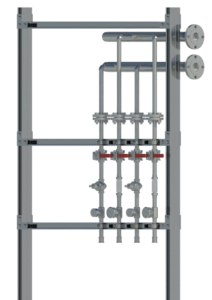

  • TYPE1 PCWS/R 2 Panel

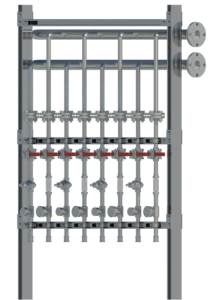

  • TYPE2 PCWS/R 4 Panel

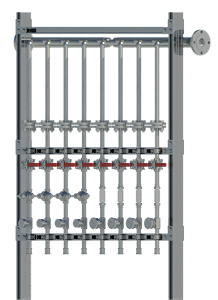

  • TYPE3 PCWS/R 4 Panel

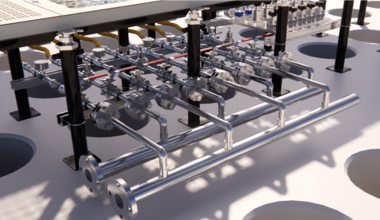

Panel on Sub Fab

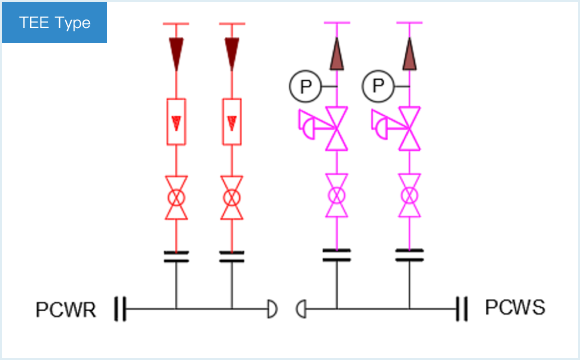

Hook-up Panel for PCWS/ PCWR

●  Several kinds of panel provided according to application and requirement by customer.

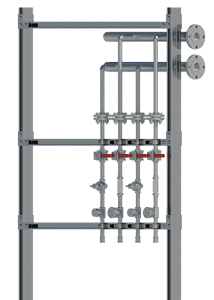

Raised Floor
Single loop

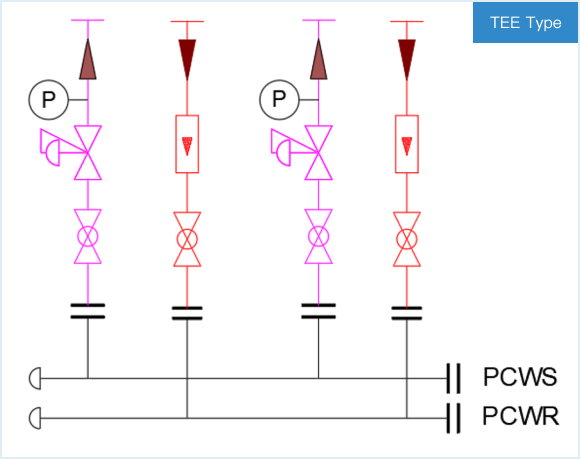

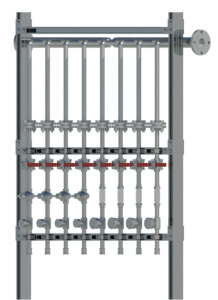

  • Hook-up Panel for PCWS/PCWR

    ●  Customized according to requirement.
