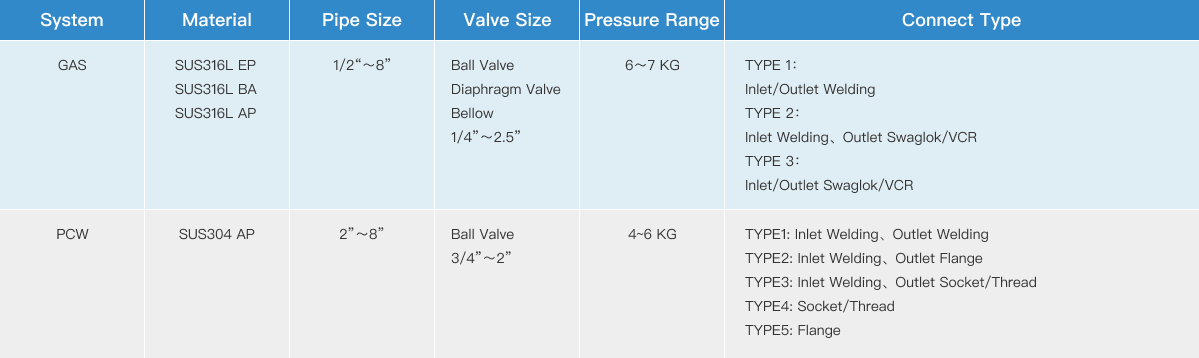

Submain specification description:
![](images/pro-13.png)
● Please verify the specifications of the valve and fitting according to the manufactory catalog.

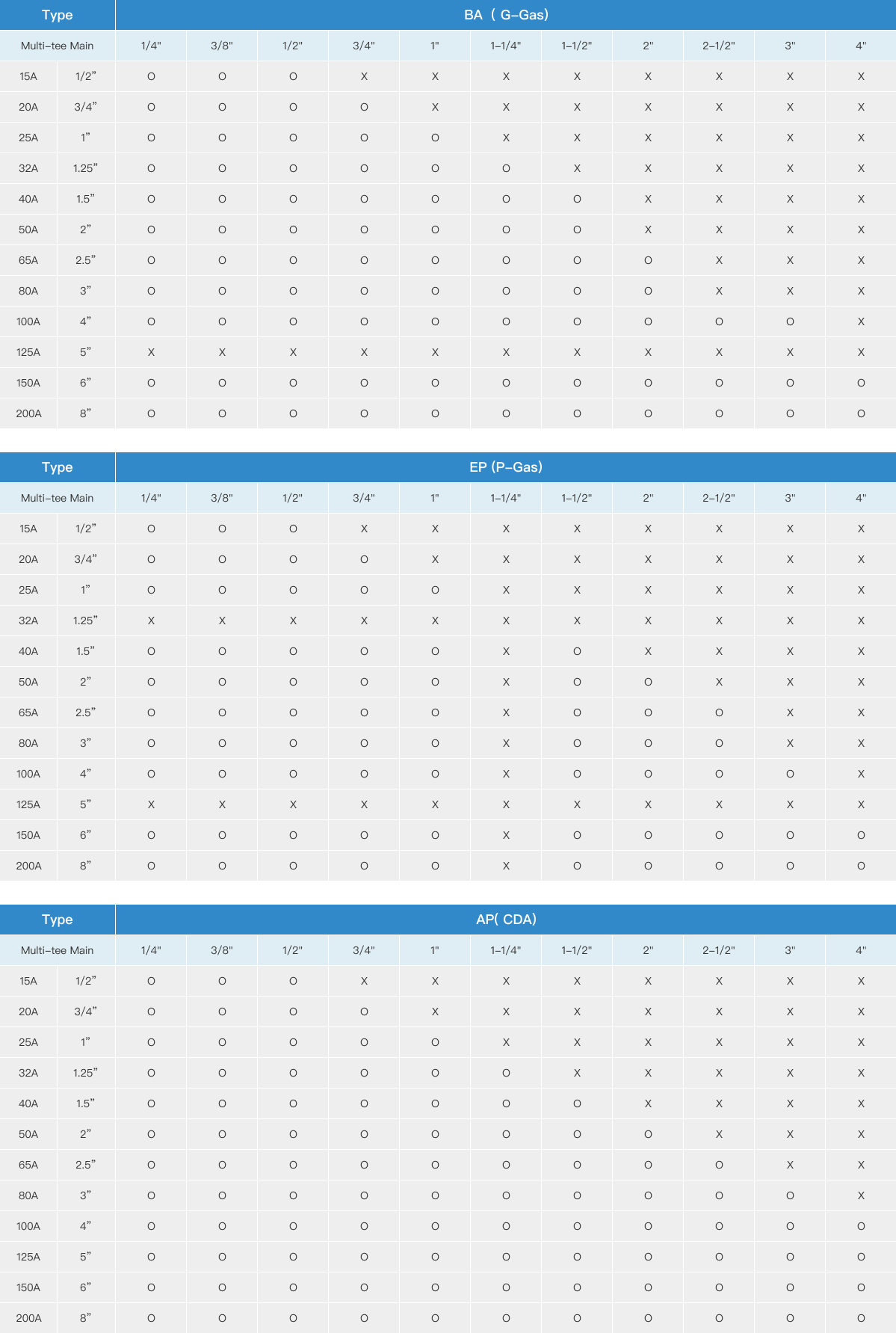

Main and multi-tee mapping table. O=YES, X=NO
![](images/pro-14.png)

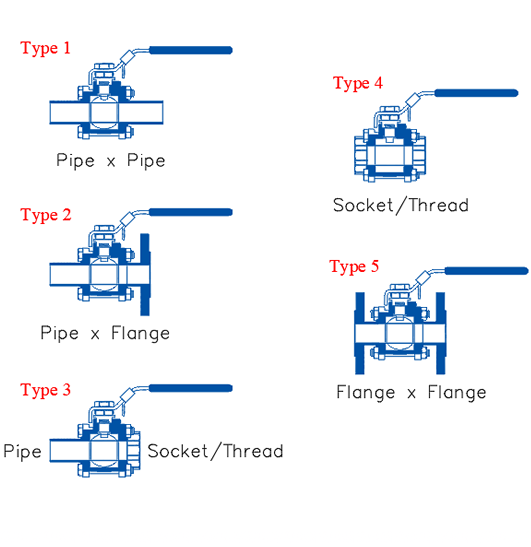

PCW Valve Connect Type
TYPE1: Inlet Welding、Outlet Welding
TYPE2: Inlet Welding、Outlet Flange
TYPE3: Inlet Welding、Outlet Socket/Thread
TYPE4: Socket/Thread
TYPE5: Flange
Pipe standard:
Stainless steel SS304 pipe diameter ≤DN50mm,SCH.10s
Stainless steel SS304 pipe diameter > DN50mm,SCH.20s
Valve standard:
Stainless steel SS304 three-piece ball valve
![](images/pro-17.png)
